CNC Machining Services by HY RP

HY RP has many high-precision machining equipments and first-class technical personnel, and has strong production and testing capabilities.

● Has more than 30 sets of high-precision CNC machine tools and testing equipments, such as: DMG, MAZAK, FANUC, SODICK, HEXAGON, and other international high-end brands;

● Processing equipments includes 5-axis linkage high-precision CNC, turning-milling compound, 4-axis linkage CNC, 3-axis high-precision CNC, CNC lathe, CNC Swiss-type lathe, EDM, Wire-EDM and Slow- feeding wire cut machine, high-precision CNC grinding machine, large-scale CNC, painting and oven equipment, etc;

● Inspection equipment includes three-coordinate measuring instrument, roundness instrument, profile instrument, image measuring instrument, spectrometer, altimeter, tensile testing machine, etc., with complete supporting capabilities for precision parts processing and providing one-stop processing service.

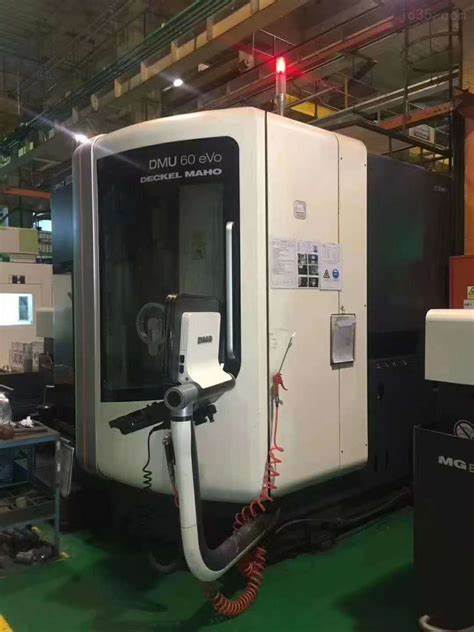

DMU 5-Axis CNC Machining Center

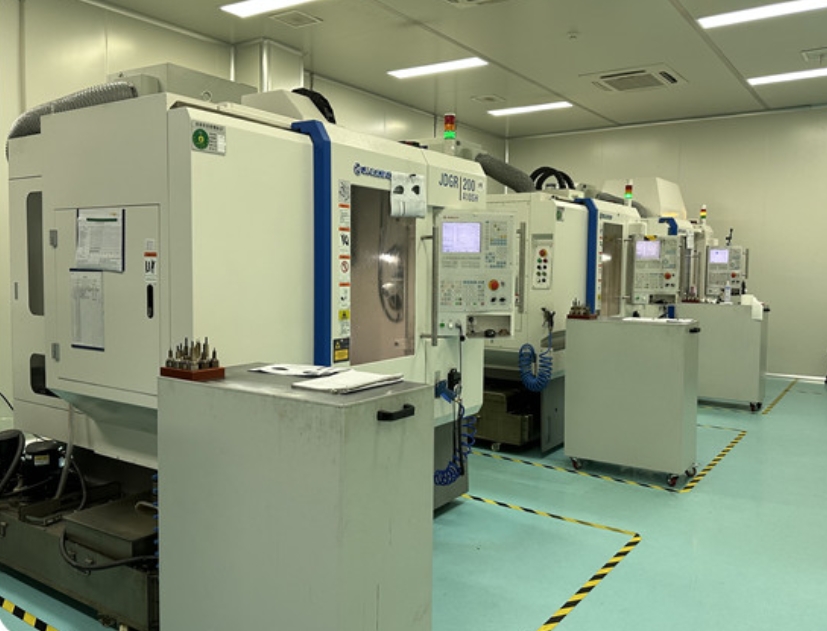

5-Axis Workshop

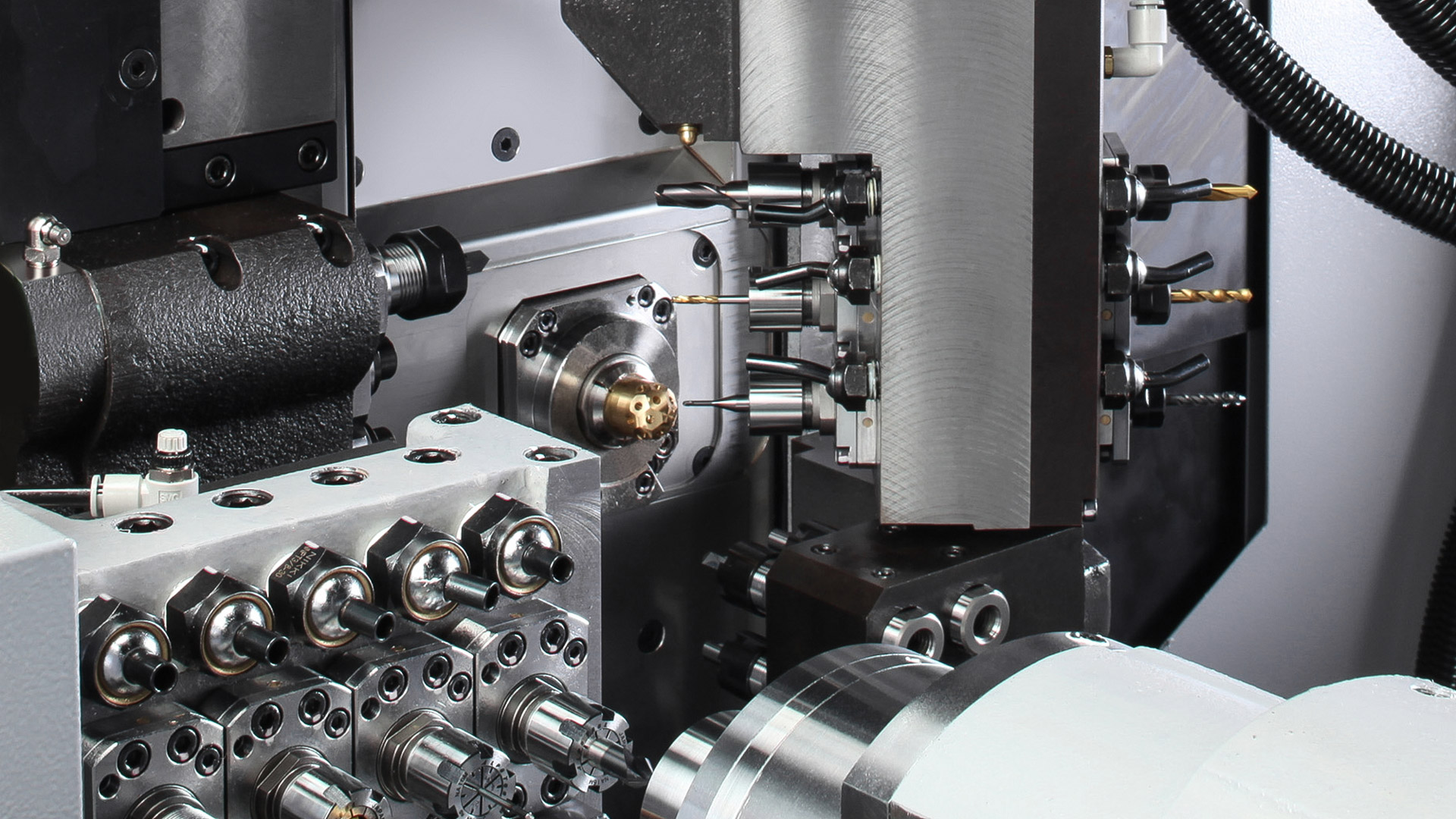

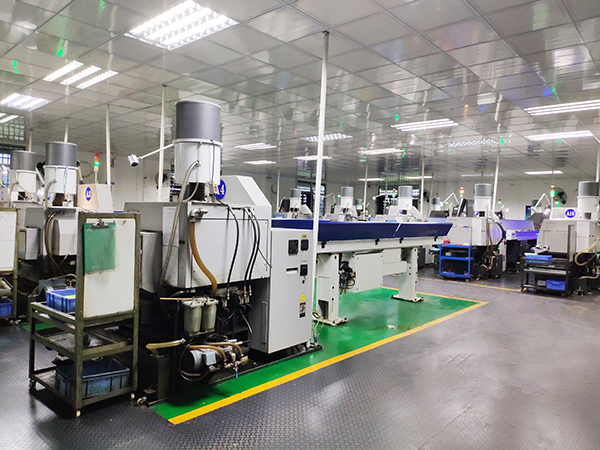

CNC Swiss-type Lathe

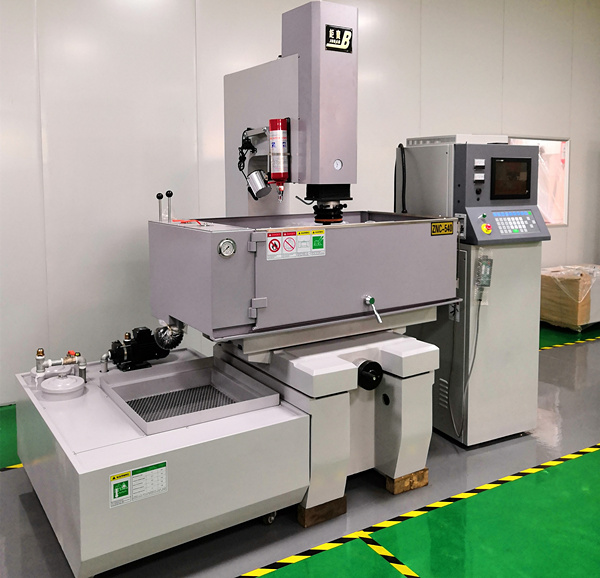

EDM (Electric Discharge Machining)

Sodick Slow-feeding Wire Cutting

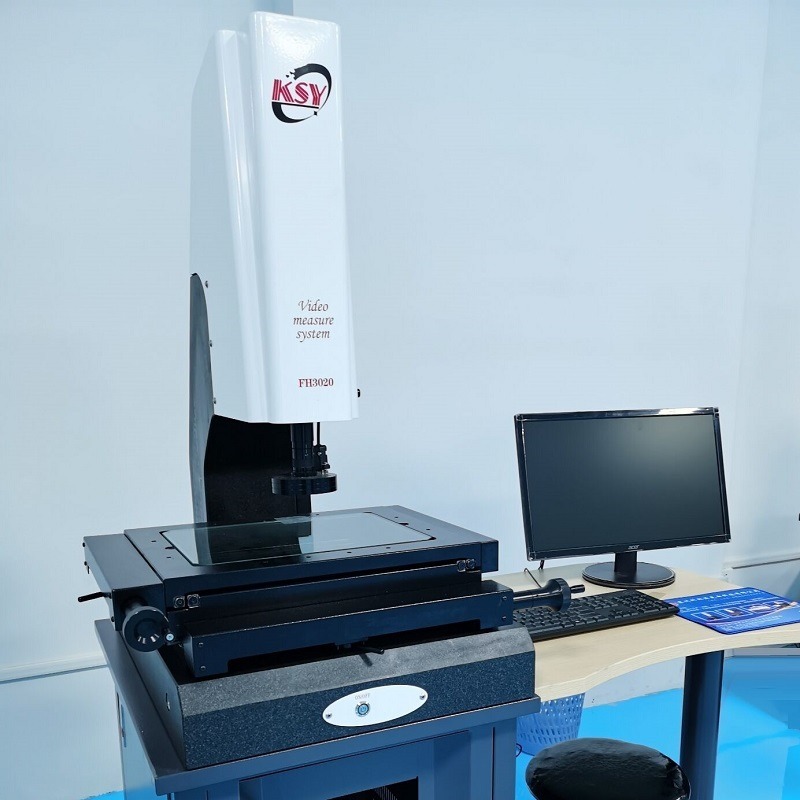

VMS Image Measuring

Hexagon CMM Measuring

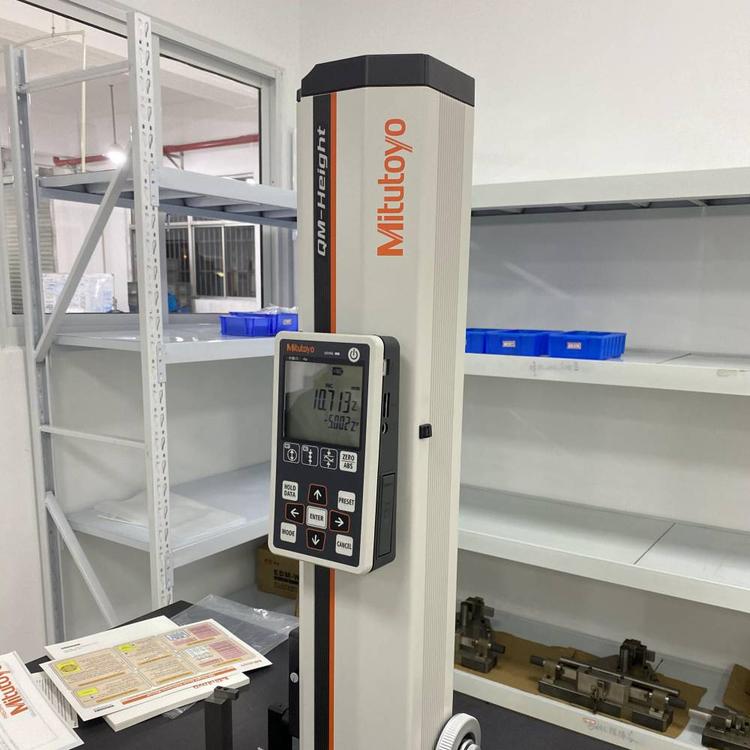

Mitutoyo Altimeter

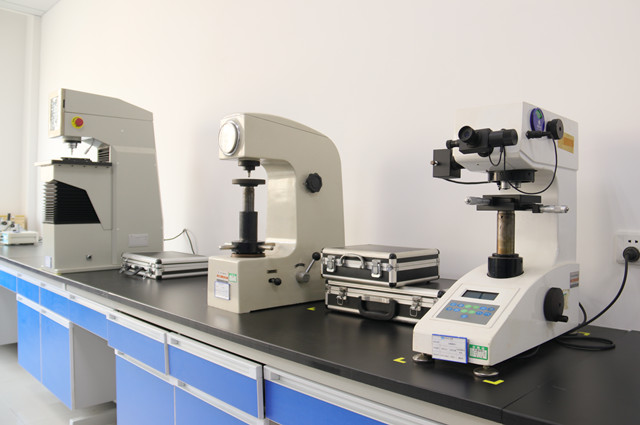

Hardness Tester

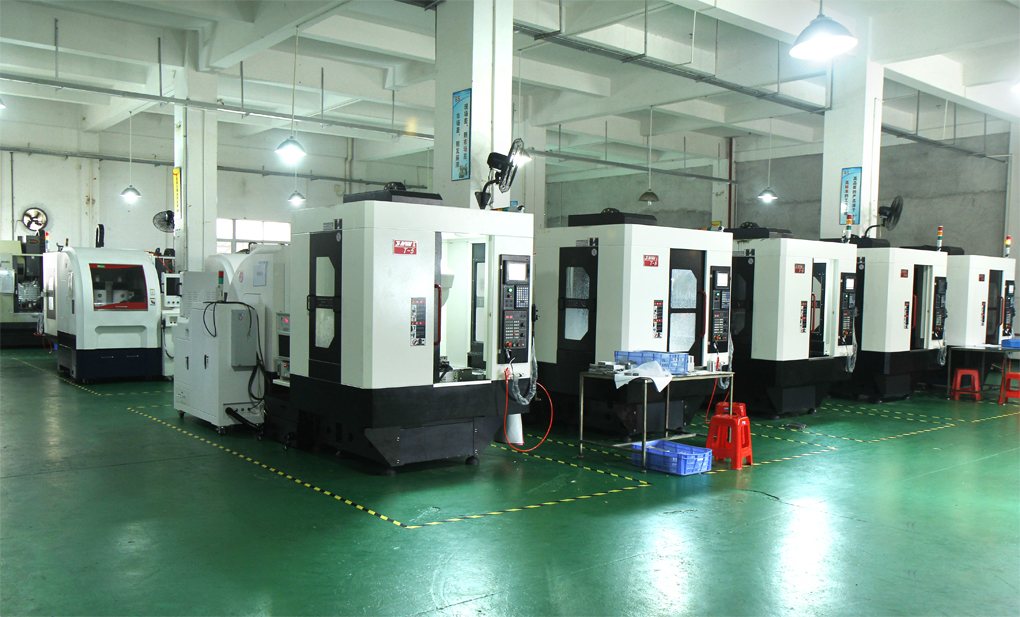

CNC Machining

Cylindrical Grinding

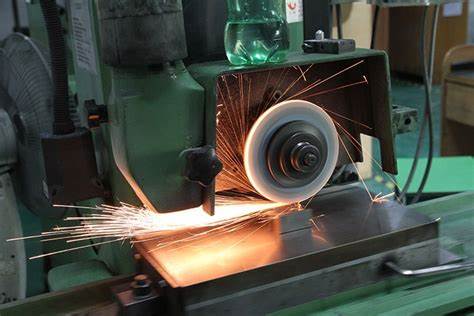

Surface Grinding

Internal Grinding

Swiss-type Machining Max OD 25mm

5-Axis CNC 360° Rotary Machining

High Precision CNC Machining Samples

Bearing Mount

Material: Titanium Alloy

Size: φ60x50mm

Process: Lathe, CNC, Grinding, EDM

Circular runout: 0.006mm

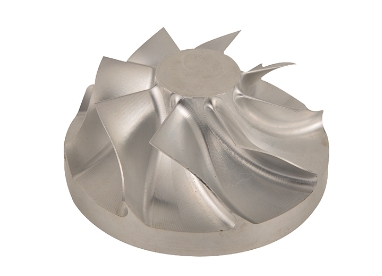

Fan Impeller

Material: Titanium Alloy

Size: φ255x106mm

Process: Lathe, 5-Axis CNC

Roundness: 0.005mm

Motor Base

Material: Aluminum

Size: φ85x240mm

Process: Lathe, CNC Milling

Concentricity: 0.02mm

Prism Holder

Material: Aluminum

Dimensions: 17x37x40mm

Process: CNC Milling, grinding

Flatness: 0.005mm

Shanghai Jiao Tong University

Material: Steel

Size: 215x225x240mm

Process: CNC, Wire Cutting, EDM

Flatness: 0.005mm

Main Base

Material: Aluminum

Dimensions: 140x154x210mm

Process: CNC, Wire Cutting

Position: 0.02mm
Parallelism: 0.01mm
Verticality: 0.01mm
Flatness: 0.02mm
Dimensional Tolerance: ±0.01mm
